Aluminum Motor Housing
We have been making stamping molds for 20 years. Our previous company name was Yuyao Jinniu Stamping Factory. This aluminum motor housing draws on all that experience. It is not just a simple metal shell — it is a strong, custom-fitted protective cover for the heart of your motor.
Product Introduction
A Custom-Fitted "Armor" for Your Motor
We have been making stamping molds for 20 years. Our previous company name was Yuyao Jinniu Stamping Factory. This aluminum motor housing draws on all that experience. It is not just a simple metal shell - it is a strong, custom-fitted protective cover for the heart of your motor.

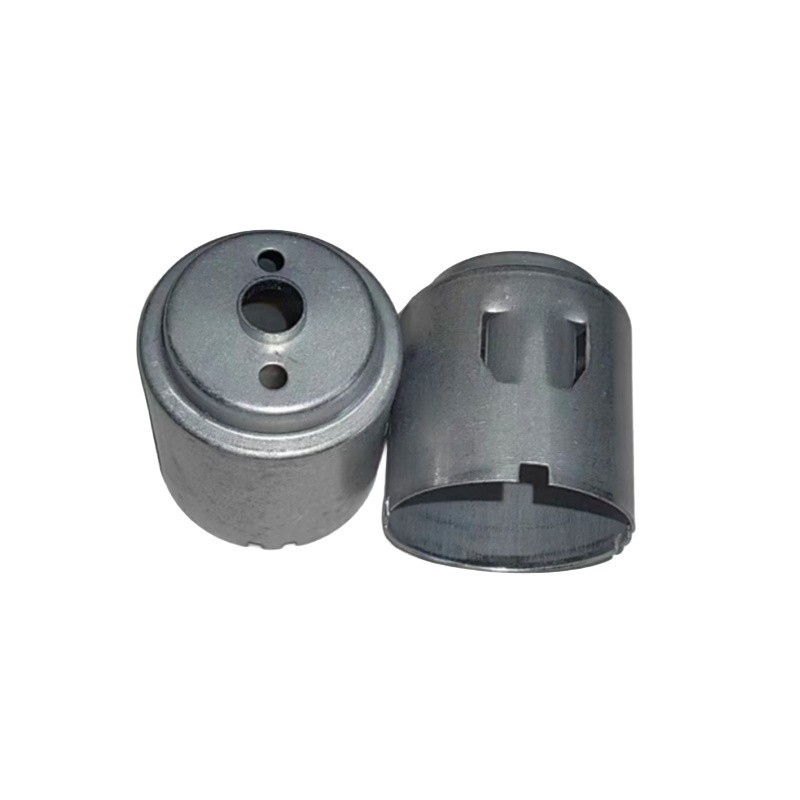

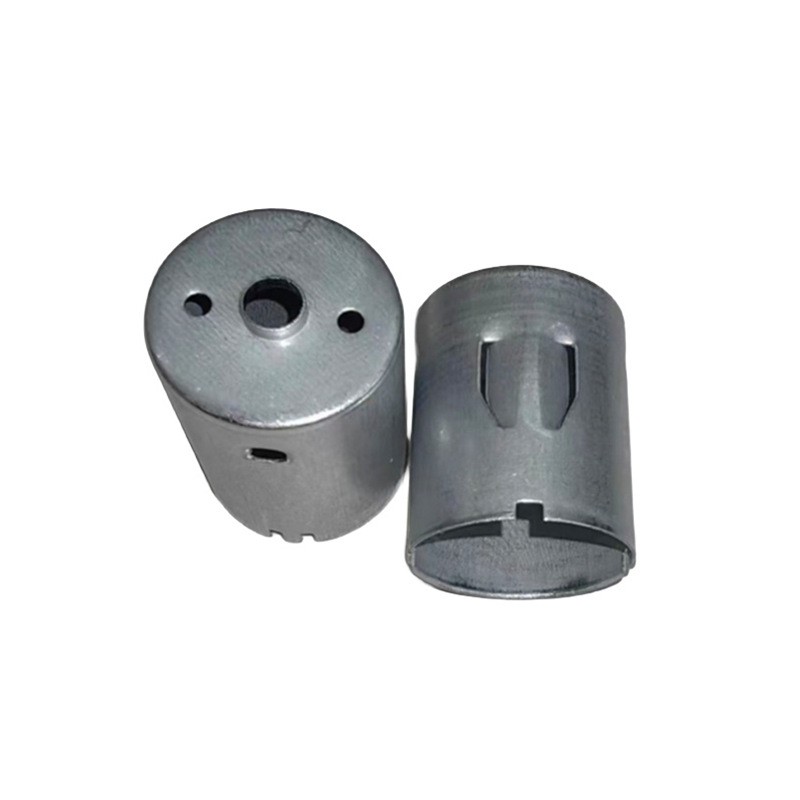

The housing has a classic cylindrical shape and a compact structure to save space. We deliberately added a small rectangular notch on the bottom edge. Don't underestimate this detail: in an automatic assembly line, the notch helps workers or robotic arms identify the correct orientation instantly, ensuring it is never installed backward. Our Australian client reported that this small design feature significantly increased their production efficiency.
Deep-Drawn Steel with Precise Tolerances
For this motor housing, we use ST14 high-performance deep-drawing steel, a material well-known in the industry. It stretches evenly without cracking, providing a solid base for assembly.
We are very flexible with wall thickness - you can customize it from 0.5 mm to 3.0 mm, depending on whether you need a lighter or heavier housing. We form each housing in one shot using 200–500 ton high-precision presses. The force ensures uniformity across all units.
We maintain very tight critical tolerances, controlled within ±0.05 mm, in accordance with ISO 2768-m. This means every housing produced in mass production is as precise as the first one.
|
Material Feature |
Standard Specification |
Your Benefit |
|
Material |
ST14 High-performance steel |
Deep-draws evenly, no cracks |
|
Thickness |
0.5mm to 3.0mm (Customizable) |
Match your exact need |
|
Dimensional tolerances |
±0.05mm (ISO 2768-m) |
Consistent, precise fit |
|
Process |
200-500 Ton press |
Strong, one-piece forming |
Optimized Heat Dissipation
Motors hate heat, and this aluminum motor housing efficiently dissipates it. If needed, we can add ventilation holes or cooling ribs on the surface. These features are not random; we use computer simulations to design the optimal airflow path, allowing more air contact for effective cooling. Our calculations show this housing can reduce motor temperature significantly, extending motor life by over 30%.
We can also apply eco-friendly zinc plating or electrophoresis coating, which meet RoHS directives for corrosion resistance. Whether for automotive micro-motors or power tools, this aluminum motor housing provides a reliable "home" for your motor.
